Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 600V AC，DC |
| Rated current | 20A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C〜+85°C |
| Materials | |
| Receptacle Housing | Nylon UL94-V0(2) |
| Plug Housing | Nylon UL94-V0(2) |
| Lock | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

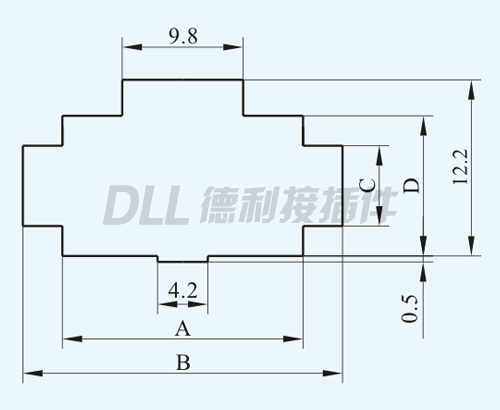

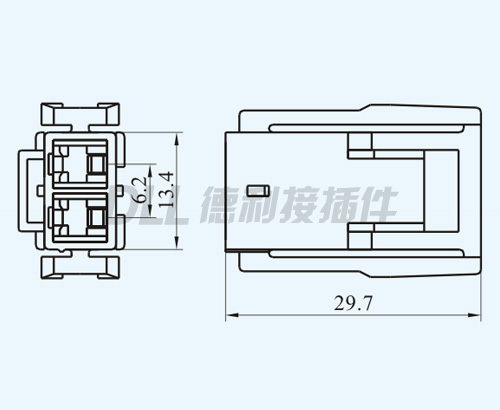

Drawing
Rosh
MSDS
Note: The above drawings are for reference only, please consult our sales staff for details
|
Plug Housing |
Receptacle Housing |
Wire Retainer |
|
DL62002-1Y(VL-1Y)
|
DL62002-1R(VL-1R)
|
DL62002-1S(VL-1S)
|
|
DL62002-2Y(VL-2Y)
|
DL62002-2R(VL-2R)
|
DL62002-2S(VL-2S)
|
|
DL62002-2VY(VL-2VY)
|
||
|
DL62002-3Y(VL-3Y)
|
DL62002-3R(VL-3R)
|
DL62002-3S(VL-3S)
|
|
DL62002-3VY(VL-3VY)
|
||
|
DL62002-4Y(VL-4Y)
|
DL62002-4R(VL-4R)
|
DL62002-2S(VL-2S)
|
|
DL62002-4VY(VL-4VY)
|
||
|
DL62002-4YM(VL-4YM)
|
DL62002-4RM(VL-4RM)
|
DL62002-4S(VL-4S)
|
|
DL62002-4VYM(VL-4VYM)
|
||
|
DL62002-6Y(VL-6Y)
|
DL62002-6R(VL-6R)
|
DL62002-3S(VL-3S)
|
|
DL62002-6VY(VL-6VY)
|
||
|
DL62002-8Y(VL-8Y)
|
DL62002-8R(VL-8R)
|
DL62002-4S(VL-4S)
|
|
DL62002-8VY(VL-8VY)
|
||
|
DL62002-12Y(VL-12Y)
|
DL62002-12R(VL-12R)
|
DL62002-3S(VL-3S)
|
|
DL62002-12VY(VL-12VY)
|
